Description

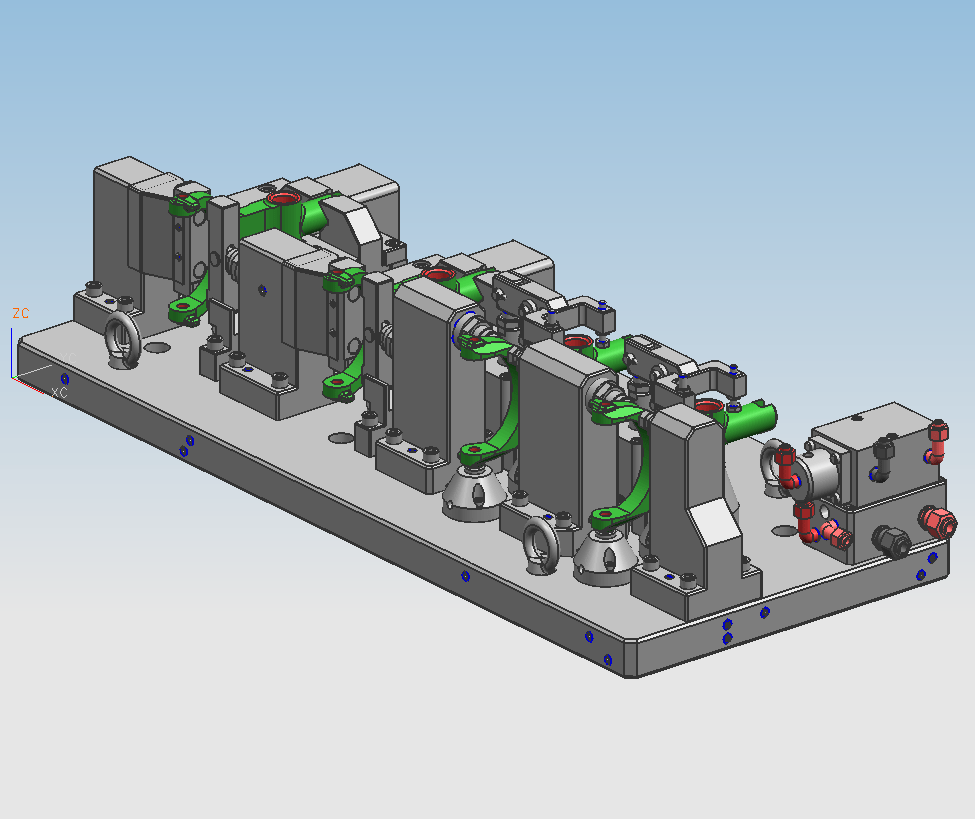

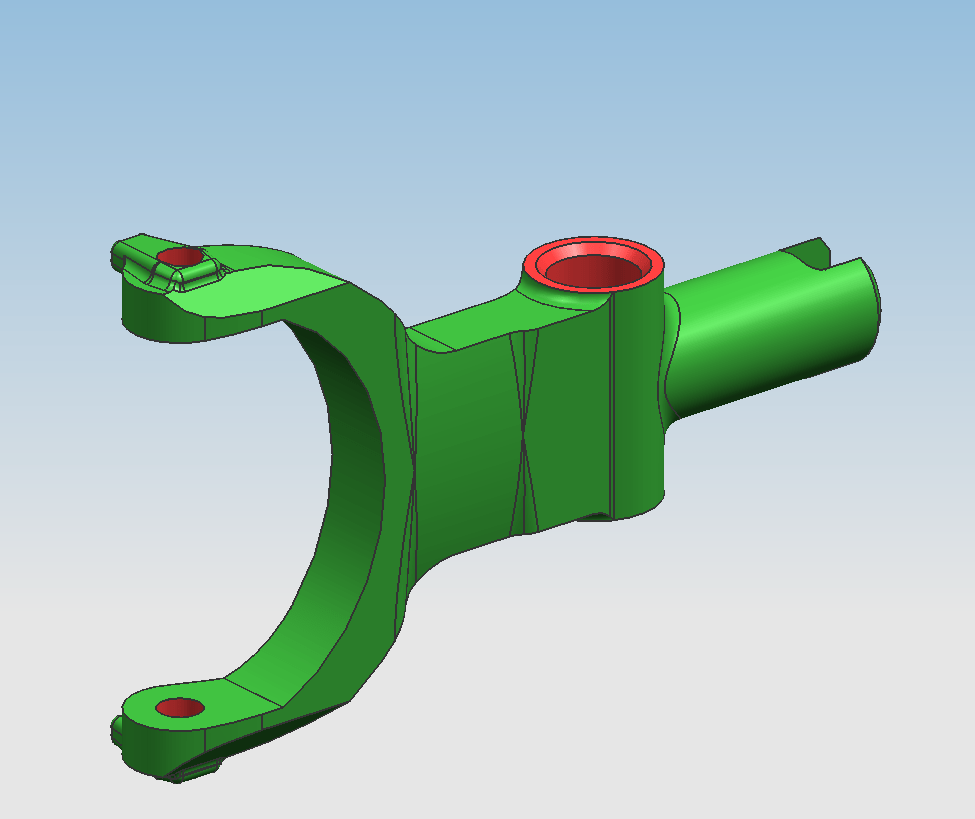

夹具描述：夹具采用叉脚定角向，轴面夹紧方式钻镗内孔及其一叉脚；后序采用前序两孔定位、叉角定角向、轴面夹紧加工另一叉角孔。

Fixture description: The fixture adopts the Angle Angle of the foot, the axial surface clamping way to drill and boring the inner hole and its one foot; The other fork Angle hole is processed by presequence two-hole positioning, fork Angle orientation and axial surface clamping.
