Description

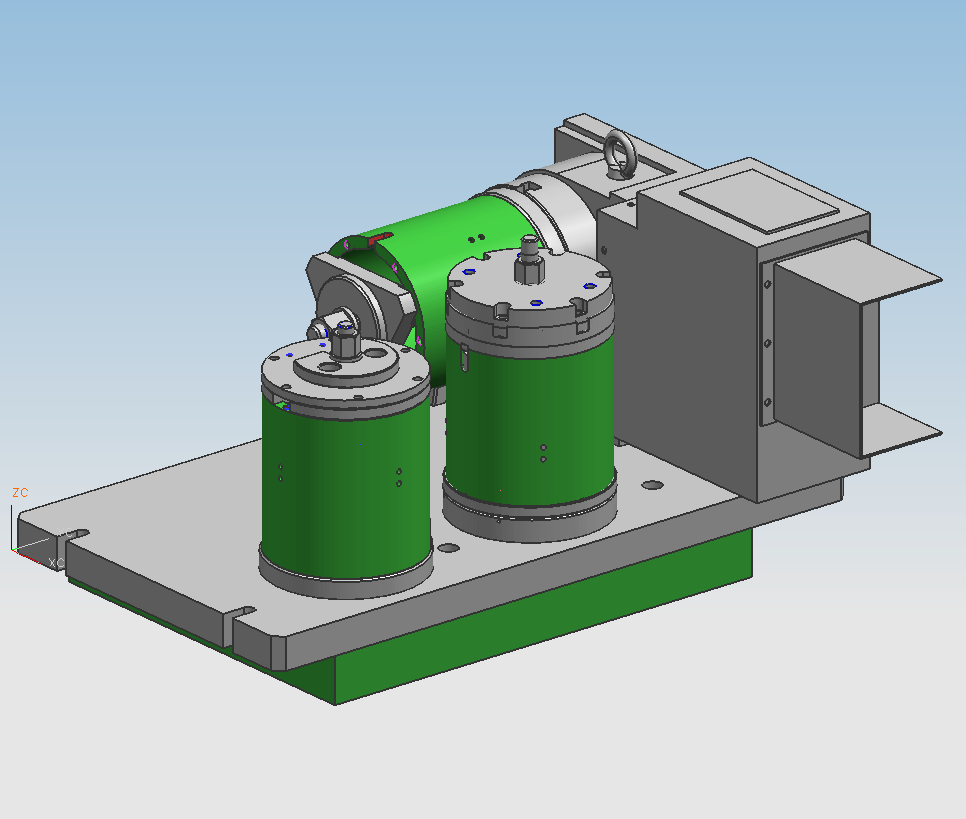

夹具描述：夹具采用第四轴旋转、端面定位、中心拉缸夹紧方式钻攻外圆螺纹孔及铣槽；端面定位、中心拉缸加紧钻攻端面螺纹孔。

Fixture description: The fixture uses the fourth axis rotation, end face positioning, the center cylinder clamping mode to drill and tap the external round thread hole and milling groove; Face positioning, center cylinder tightening drilling face thread hole.
