夹具描述：夹具采用零件中心定位、菱形销角向定位、端面轴向定位，上端面夹紧加工各孔及凸台面。

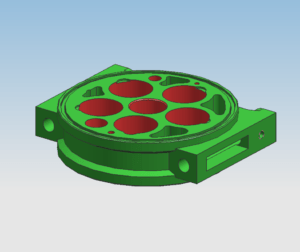

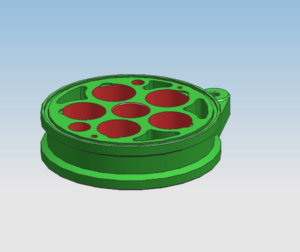

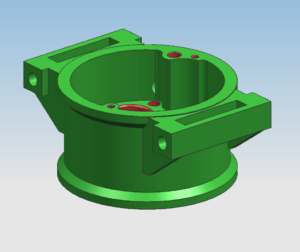

Fixture description: The fixture adopts the central positioning of the parts, the angular positioning of the diamond pin, the axial positioning of the end face, and the upper end face clamping processing of the holes and the convex table.
